| Customization: | Available |
|---|---|
| Quality: | High Quality |
| Inventory: | Abundant |
| Quantity: | |
|---|---|
Introduce our thrust flat needle roller bearings to meet your needs!
Want to improve the performance of your industrial machinery? Your search is over! The design of our thrust flat needle roller bearings offers many advantages, making them the perfect choice for your requirements.
1. Excellent accuracy: The precision of our bearings is carefully crafted to ensure minimum friction and optimum performance, thereby increasing the efficiency of your machine.
2. High load capacity: Designed to withstand heavy axial and radial loads, our bearings guarantee reliable operation, even in the most demanding applications.
3. Low maintenance: Say goodbye to frequent downtime and maintenance costs. Our thrust flat needle roller bearings are durable and reduce the need for replacement.
4. Multi-functional applications: Whether you operate in automotive, manufacturing or any other industry, these bearings are versatile enough to meet a wide range of applications
Parameter:
| Product Name | Thrust plane needle roller bearing |
| Brand Name | KSA |
| Material | Gcr15 |
| Precision Grade | P0,P6,P5 |
| Certification | ISO 9001 |
| Packeage | Box /Carton/Wooden Box/Plastic Tube or Per buyers requirement |
| MOQ | Depending On Moedl |
| Serice | OEM |
Low Cross Section
In applications that require less space, flat needle roller bearings can be miniaturized
High load capacity and stiffness
Due to the large number of rollers, the flat needle roller bearing has a high bearing capacity and stiffness
Good running performance
With good operating performance, rest assured to use
Bearing characteristic
Can withstand axial heavy loads and impact loads, in one assembly, the diameter of the needle roller is small, so the use of these bearings can withstand heavy axial loads and impact loads
Install
In order to avoid local deformation and cracking of the stamping outer ring and prevent damage to the normal work of the needle roller, it is forbidden to use tools such as a hand hammer to hit the thin-walled outer ring during the installation of the bearing, and a press or special installation tool should be used for installation.
| shaft | bearing | dimension(mm) | Basic Load Rating(N) | limited speed(rpm) | width | |||||
| dia. | type | (g) | ||||||||
| (mm) | original | Inner | Outer | Width | dynamic | static | grease | oil | ||
| type | Dc1 | Dc | Dw. | |||||||
| 4 | AXK 0414 TN | 4 | 14 | 2 | 4100 | 7900 | 14000 | 5500 | 0.7 | |
| 5 | AXK 0515 TN | 5 | 15 | 2 | 4000 | 8500 | 13000 | 4800 | 0.8 | |
| 6 | AXK 0619 TN | 6 | 19 | 2 | 6000 | 12000 | 12000 | 4200 | 1 | |
| 8 | AXK 0821 TN | 8 | 21 | 2 | 7100 | 13500 | 11000 | 4000 | 2 | |
| 10 | AXK 1024 | 10 | 24 | 2 | 7800 | 24000 | 9500 | 3600 | 3 | |
| 12 | AXK 1226 | 12 | 26 | 2 | 8200 | 26700 | 7200 | 3200 | 3 | |
| 15 | AXK 1528 | 15 | 28 | 2 | 9500 | 33000 | 6500 | 3000 | 4 | |
| 17 | AXK 1730 | 17 | 30 | 2 | 10200 | 36500 | 5500 | 2800 | 4 | |
| 20 | AXK 2035 | 20 | 35 | 2 | 11000 | 43000 | 5000 | 2600 | 5 | |
| 25 | AXK 2542 | 25 | 42 | 2 | 12500 | 538000 | 4500 | 2300 | 7 | |
| 30 | AXK 3047 | 30 | 47 | 2 | 14000 | 656000 | 4100 | 2100 | 8 | |
| 35 | AXK 3552 | 35 | 52 | 2 | 15500 | 770000 | 3700 | 2000 | 10 | |
| 40 | AXK 4060 | 40 | 60 | 3 | 25000 | 1100000 | 3200 | 1900 | 16 | |
| 45 | AXK 4565 | 45 | 65 | 3 | 25800 | 1250000 | 3000 | 1700 | 18 | |
| 50 | AXK 5070 | 50 | 70 | 3 | 27600 | 1370000 | 2800 | 1600 | 20 | |
| 55 | AXK 5578 | 55 | 78 | 3 | 35000 | 1950000 | 2600 | 1500 | 28 | |
| 60 | AXK 6085 | 60 | 85 | 3 | 38600 | 2400000 | 2500 | 1100 | 33 | |
| 65 | AXK 6590 | 65 | 90 | 3 | 41000 | 2580000 | 2400 | 1000 | 35 | |
| 70 | AXK 7095 | 70 | 95 | 4 | 50000 | 2670000 | 2100 | 950 | 60 | |
| 75 | AXK 75100 | 75 | 100 | 4 | 51000 | 2750000 | 1900 | 900 | 61 | |
| 80 | AXK 80105 | 80 | 105 | 4 | 52400 | 2850000 | 1800 | 870 | 63 | |
| 85 | AXK 85110 | 85 | 110 | 4 | 54000 | 3000000 | 1700 | 850 | 67 | |
| 90 | AXK 90120 | 90 | 120 | 4 | 66000 | 4100000 | 1580 | 800 | 86 | |
| 100 | AXK 100135 | 100 | 135 | 4 | 76000 | 5570000 | 1400 | 770 | 104 | |
| 110 | AXK 110145 | 110 | 145 | 4 | 82000 | 6000000 | 1300 | 740 | 122 | |
| 120 | AXK 120155 | 120 | 155 | 4 | 84800 | 6620000 | 1200 | 700 | 131 | |
| 130 | AXK 130170 | 130 | 170 | 5 | 110000 | 9300000 | 1100 | 660 | 205 | |
| 140 | AXK 140180 | 140 | 180 | 5 | 115000 | 9100000 | 1000 | 620 | 219 | |
| 150 | AXK 150190 | 150 | 190 | 5 | 118000 | 9600000 | 950 | 580 | 232 | |
| 160 | AXK 160200 | 160 | 200 | 5 | 125000 | 10000000 | 900 | 500 | 246 | |
Shandong Kangshi Precision Bearing Manufacturing Co., Ltd., located in Yandian Town Industrial Park, Linqing City, Shandong Province, mainly produces zero deep groove ball bearings, two types of cylindrical roller bearings, three types of aligning roller bearings, six types of angular contact ball bearings, seven types of tapered roller bearings, eight types of thrust ball bearings, thrust bearings, nine types of thrust aligning roller bearings, outer spherical bearings, auto parts, Motorcycle parts and other rolling bearings. Our factory has strong professional technology, good production equipment and perfect testing means, can fully meet the various types, specifications, high precision and special use requirements of bearing products customized processing, the production process of the product according to the strict national standards of enterprise internal control standards for the implementation of full inspection and multi-project comprehensive inspection of factory products, Can ensure the quality of each set of factory bearing products to meet national standards. Kangshi bearing has always implemented national standards, market prices, and implemented the "three guarantees" principle for customers: To ensure high-quality quality, preferential prices, superior after-sales service! Welcome customers at home and abroad to consult and negotiate business, the company will continue to win the trust of more customers with good product quality and reputation.
Our Advantage:
1.Our products: with high quality, long life, high speed, low noise, low friction quality products
2. We have: sufficient storage space, sufficient inventory, high production efficiency, we provide customers with the most favorable prices
3. Chinese bearing: in China's production line, products are exported to all over the world, product specifications are complete, certificates are complete, professional R & D team
4. After-sales service and technical guidance: The company provides after-sales service and technical guidance according to customer requirements and needs

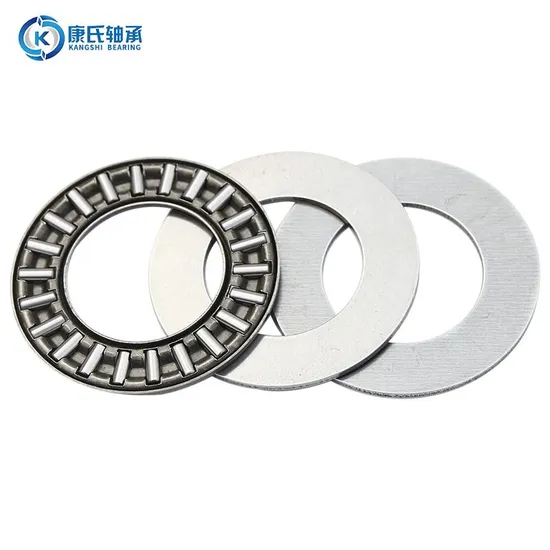

AXK type thrust needle roller and cage assembly are the main components of thrust
needle roller bearings. Cage cold-drawn steel plate Small size cage made of plastic,
G2 class high-precision needle rolling to ensure uniform load distribution. The thrust cylindrical roller and cage assembly is similar to the AXK assembly in that it can
withstand high thrust loads.
Introduction: Needle roller bearing is a kind of rolling bearing which is widely used. It is characterized by small friction resistance, high speed, can be used to bear radial load or radial and axial simultaneous action of the combined load on the machine parts, can also be used to bear axial load on the machine parts, such as small power motor,
automobile and tractor transmission, machine tool gearbox, general machines, tools, etc.
Scope of use: Needle roller bearings can be used in water pump compressor transmission, instrumentation, motor, household appliances, internal combustion engine, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo ball, etc.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic drums/boxes/industrial packaging + cartons + pallets). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q:What are the advantages of your company's services compared to other companies?
A: Factory direct supply, price advantage, 24 hours online timely reply, Provide customers with customs clearance
and quality of various documents, 100% after-sales service
Q:OEM POLICY
A:We can printing your brand (logo,artwork)on the bearings or laser engraving your brand on the bearings.
We can custom your packaging according to your design All copyright own by clients and we promised don't
disclose any info.
Q:How to contact us quickly?
A:Please send us an inquiry or message and leave your other contact information, such as phone number,
whatsapp account or wechat account, we will contact you as soon as possible and provide the detailed information
you need.
Please feel free to contact us, if you have any other question
